Smart Office Bluetooth Badge 3.7″ and Digital Doorplate 11.6″
UItra-long battery life
Low power consumption brings ultra-long battery life. The 11.6 inch product will work for over five years. While the 3.7 inch card, a full battery lasts over 3 months with non-stop working.
Various integration methods
Various integration methods are provided to update messages on the device. Bluetooth, NFC, Bluetooth 5.1, and cloud, you can pick as you want.
Fast update speed
The update speed has been further improved and was shorted to 6-10 seconds with the process time. Manage tags more effectively.
Sleek aesthetic design
When it comes to design, the latest products adopt a newly-designed look. Straightforward and sleek design brings a modern and business formality.
IP67 water resistance
The 3.7 work ID is designed for outdoor use with IP67 design, making it highly waterproof and dust-proof. You won't even worry when you dropped the unit in water, for the device can still work for over 30 minute in 1-meter-depth water.
Highly customizable design
The true core competitive edge of our TAG series is the fact that all products are highly customizable. Colors, ID design,functions,your logo,or whatever you call branding.We do what based on your needs.
Bluetooth 5.1
Fast transmission is enabled by Bluetooth 5.1. Based on the Bluetooth base station, the unit is able to capable of receiving information, personal attendance,etc., in an effective way.
Slim but durable
Employees won't fee the burden by the 3.7 mm and 35g unit. However, it durable enough for long-time use. No worries about the breakdown caused by wear or damage.
“T037D Employee ID Card”
Display who you are.
The employee ID badge clearly showcases employee office information including name, phone number, position, etc. This also helps to building an environment-friendly profile for your enterprise.
Used as a access card
Carrying too many cards n workspace sometimes is really a nuisance. But employees won't feel bothered with this card! They can customize the versatile badge as an (security) access card or more functions in work.
Keep everyone informed
Employees may ignore some urgent messages even if they are carrying phones. Maybe they forget to take phones temporarily or maybe phones are at mute mode. With a vibratory motors sitting in the work ID card, the card helps receive notifications in real time, without missing a single one!

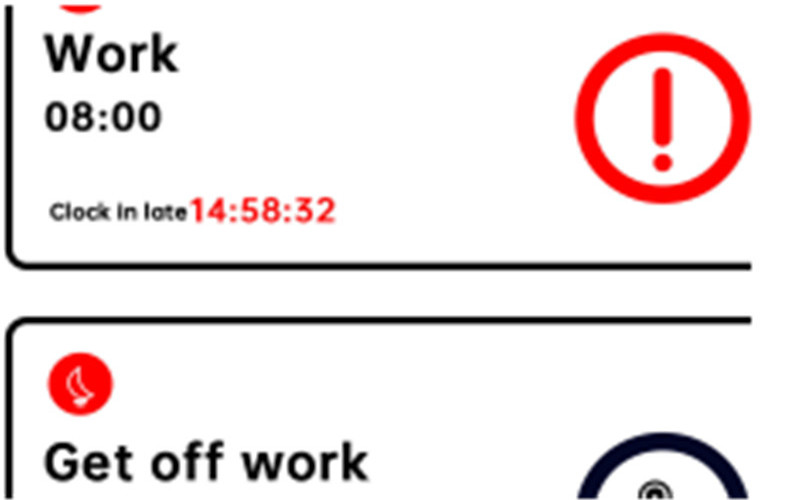

Attendance management
By integrating employee cards into company attendance system, the HR department can record employee attendance automatically by connecting badges to cloud. Help reduce human interference and further improve attendance accuracy.
Meeting schedules display
People may forget the meetings they are going to out of intensive schedules. This card can help, by clearly displaying meeting schedules and time. Know the meeting information just at a glance and greatly avoid missing important meetings.
“T116 Doorplate”
Check meeting room at a glance
The digital doorplate shows some important information about the room. Customize the information you want to display, including the room name, meeting, schedules, room availability, availability time and more. To know the room information just at a glance.
Make meeting schedules easier and more organized
Organized and clear meeting schedules prove an impetus on improving workplace productivity. They makes it easier to reserve or cancel a room, without wasting a minute, and space for everyone can clearly see when a room becomes available. The digital signage outside the room helps resolve conflicts for space while improving efficiency in workplace.
T037D
3-month battery life
3-color options
NFC-capable device
IP67 water resistance
Support customization
|
Project name |
Parameters |
|
|
Screen Specification |
Model | T037D |
| Size | 3.7 inch | |
| Resolution | 240×416 | |
| DPI | 129 | |
| Color | Black white and red | |
| Dimension | 103.5x59.3 ×3.7 mm | |
| Weigh | 35 g | |
| Angle of view | 178° | |
| Battery type | Rechargeable lithium battery | |
| Battery capacity | 350 mAh | |
| Waterproof | IP67 | |
| Charging | Standard QI wireless charging | |
| Storage | 512kb+8MB | |
| Bluetooth | Bluetooth 5.1 | |
| LED | 3-color LED | |
| Max drop distance | 1.2 m | |
| Operating temperature | 0-40℃ | |
| Working temperature | 0-40℃ | |
| NFC | Customizable | |
| G-sensor | 3-axis gravity sensor | |
| Transmission frequency band | 2400Mhz-2483.5Mhz | |
| Positioning | Beacon positioning | |
| Transmit power | 6dBm | |
| Channel bandwidth | 2Mhz | |
| Sensitivity | -94dBm | |
| Transmission distance | 15 meters | |
| Frequency shift | ±20kHz | |
| Working current | 3mA in average | |
T116
11.6"large display
Place and play device
Programmable buttons
Up to 5-year lifespan
Highly customizable
|
Project name |
Parameters |
|
|
Screen Specification |
Model | T116 |
| Size | 11.6 inch | |
| Resolution | 640×960 | |
| DPI | 100 | |
| Color | Black white and red | |
| Dimension | 266x195 ×7.5 mm | |
| Weigh | 614 g | |
| Angle of view | Approx 180° | |
| Battery type | 2XCR2450*6 | |
| Battery capacity | 2X 3600 mAh | |
| Button | 1X Page up/down; 1X Frontlight | |
| Outlook color | White (customizable) | |
| Materials | PC+ ABS | |
| Bluetooth | Bluetooth 5.1 | |
| LED | 3-color LED(Programmable) | |
| Max drop distance | 0.6 m | |
| Operating temperature | 0-40℃ | |
| Working temperature | 0-40℃ | |
| NFC | Customizable | |
| Platform | Web client(Bluetooth station);App;±20kHz | |
| Transmission frequency band | 2400Mhz-2483.5Mhz | |
| Transfer method | Bluetooth base station; Android App | |
| Input voltage | 3.3 watts | |
| Channel bandwidth | 2Mhz | |
| Sensitivity | -94dBm | |
| Transmission distance | 15 meters | |
| Frequency shift | ±20kHz | |
| Working current | 7.8 mA in average | |
It may be hard for the hardware products to work alone. To help integrate the e-paper products with software or your platform, we also provide our self-developed
Bluetooth base station, cloud platform and some necessary protocols or documents to help integrate into the system.
Users may demand various integration methods based on actual needs. We provide local integration method (Dongle) to users who attach more attention on data security, to update images on devices. Uses can also update images via cloud network and Ethernet integrating.

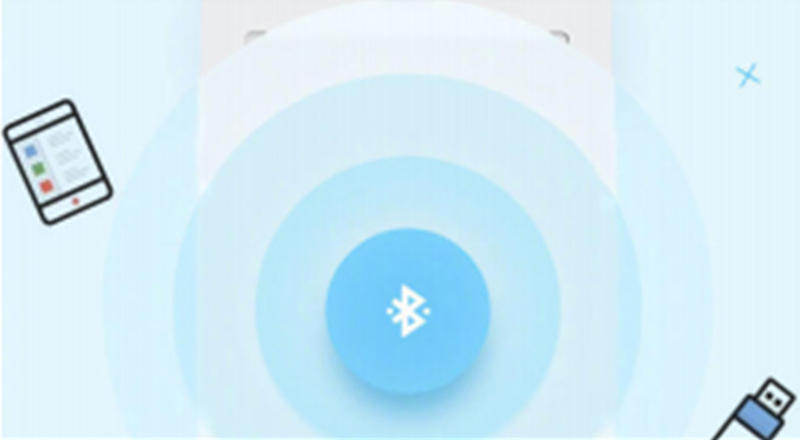

Via Bluetooth Base Station
Dongle Integration
Bluetooth Integration
